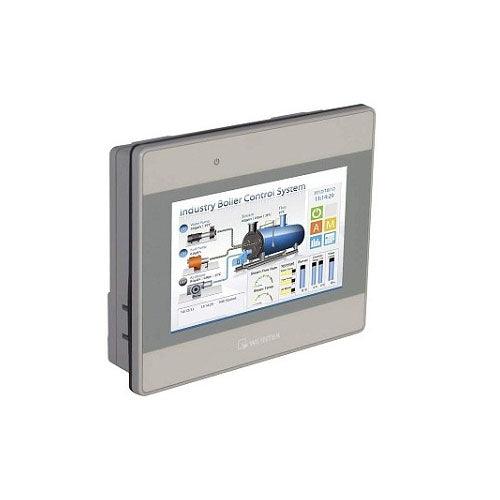

Weintek MT8102iE Human Machine Interface in Pakistan

A Human-Machine Interface (HMI) is a user interface or dashboard that connects a person to a machine, system, or device . While the term can technically be applied to any screen that allows a user to interact with a device, HMI is most commonly used in the context of an industrial process. Specifications: Display Display: 10.1" TFT Resolution: 1024 x 600 Brightness (cd/m²): 350 Contrast Ratio: 500:1 Backlight Life Time: >50,000 hrs. Colors: 16.7M LCD Viewing Angle (T/B/L/R): 60/60/70/70 Touch Panel Type: 4-wires Resistive type Accuracy: Active Area Length(X)±2%, Width(Y)±2% Memory Flash: 128 MB RAM: 128 MB Processor 32-bit RISC Cortex-A8 600MHz I/O Port USB Host: USB 2.0 x 1 Ethernet: 10/100 Base-T x 1 COM 2: RS-485 2W/4W COM 3: RS-485 2W RTC Built-in Power Input Power: 24±20 VDC Power Isolation: Built-in Power Consumption: 650 mA @ 24 VDC Voltage Resistance: 500VAC (1 min.) Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes) Specification PCB Coating: Yes Enclosure: Plastic Dimensions WxHxD: 271  x 213 x 36.4 mm Panel Cutout: 260 x 202 mm Mount: Panel mount Environment Protection Structure: NEMA4 / IP65 Compliant Front Panel Storage Temperature: -20° ~ 60°C (-4° ~ 140°F) Operating Temperature: -0° ~ 50°C (32° ~ 122°F) Relative Humidity: 10% ~ 90% (non-condensing) Certificate CE: CE marked Software EasyBuilder Pro Package Includes: 1 x Weintek MT8102iE Human Machine Interface
