The power supply transformer raises or lowers the voltage as needed . Most devices require stepped down voltage from standard AC outlets, which output 100 to 240 volts, to a much lower amount. Some transformers, however, will step up the voltage and isolate the incoming and outgoing circuits.
Features:
Great Switching Power Supply for Home Appliances
Design with Built-in EMI Filter, Improve Signal Precision.
Approvals: 3C/FC/ CE
EMC Standards: According with GB9254, EN55022 class A, EN61347-2-13:2008 Standards
Certifications: CE & RoHS
Meet CEC Energy Efficiency Level IV.
Power LED Monitor (LED Glow when in Use)
Category - Switch Mode Power Adaptor (SMPS)
MTBF >50,000 hours
IN-DOOR USE ONLY!
This Power Supply Unit "DOES NOT" comes with an installation instruction, wiring cable, on/off switch, or screws. The professional installation of a qualified electrician is highly recommended.
PLEASE NOTE THAT DESIGN AND COLOR MAY CHANGE FROM THE PICTURE SHOWN ABOVE
Specification:
Input Voltage : AC 90 - 264V 50 / 60Hz
Output Voltage : 12V DC, 15A, and 180Watt
Output Voltage : Adjustment Range: ±20%
Output Voltage Type - DC Current
Shell Material : Metal Case / Aluminum Base
Color : Silver
Weight: 700g Approx.
Dimension : 200 x 99 x 41mm Approx.
Uses:
Power supply for electronics projects
Industrial equipment and machinery
LED lighting systems
CCTV and security systems
DIY and hobbyist electronics
Package Includes:

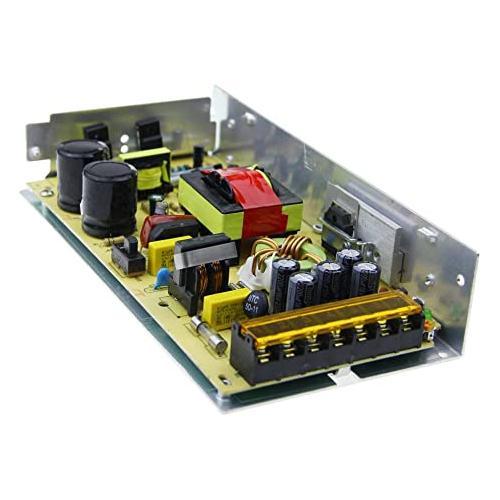

1 x 12 Volt 15 Amp Power Supply Transformer SMPS
