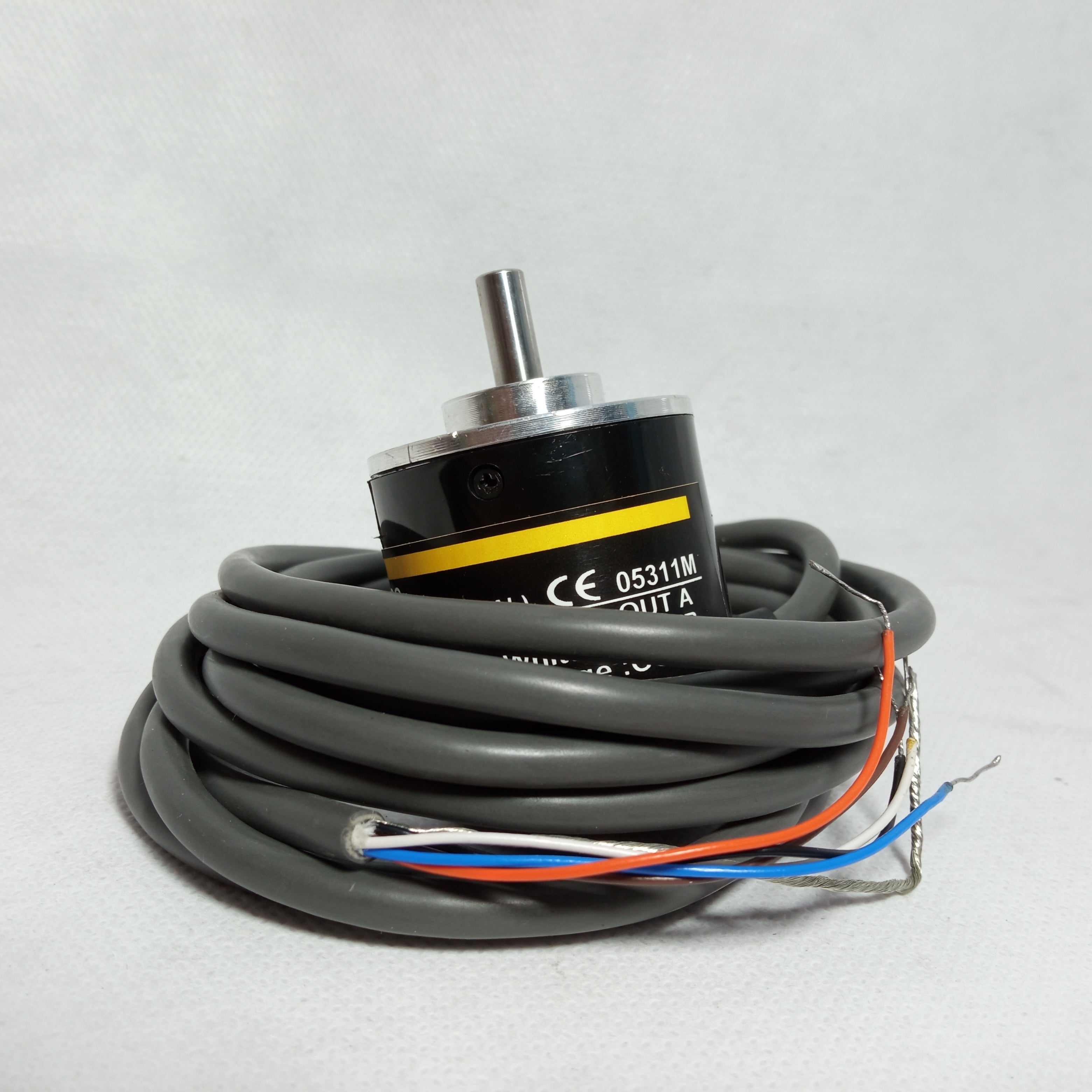

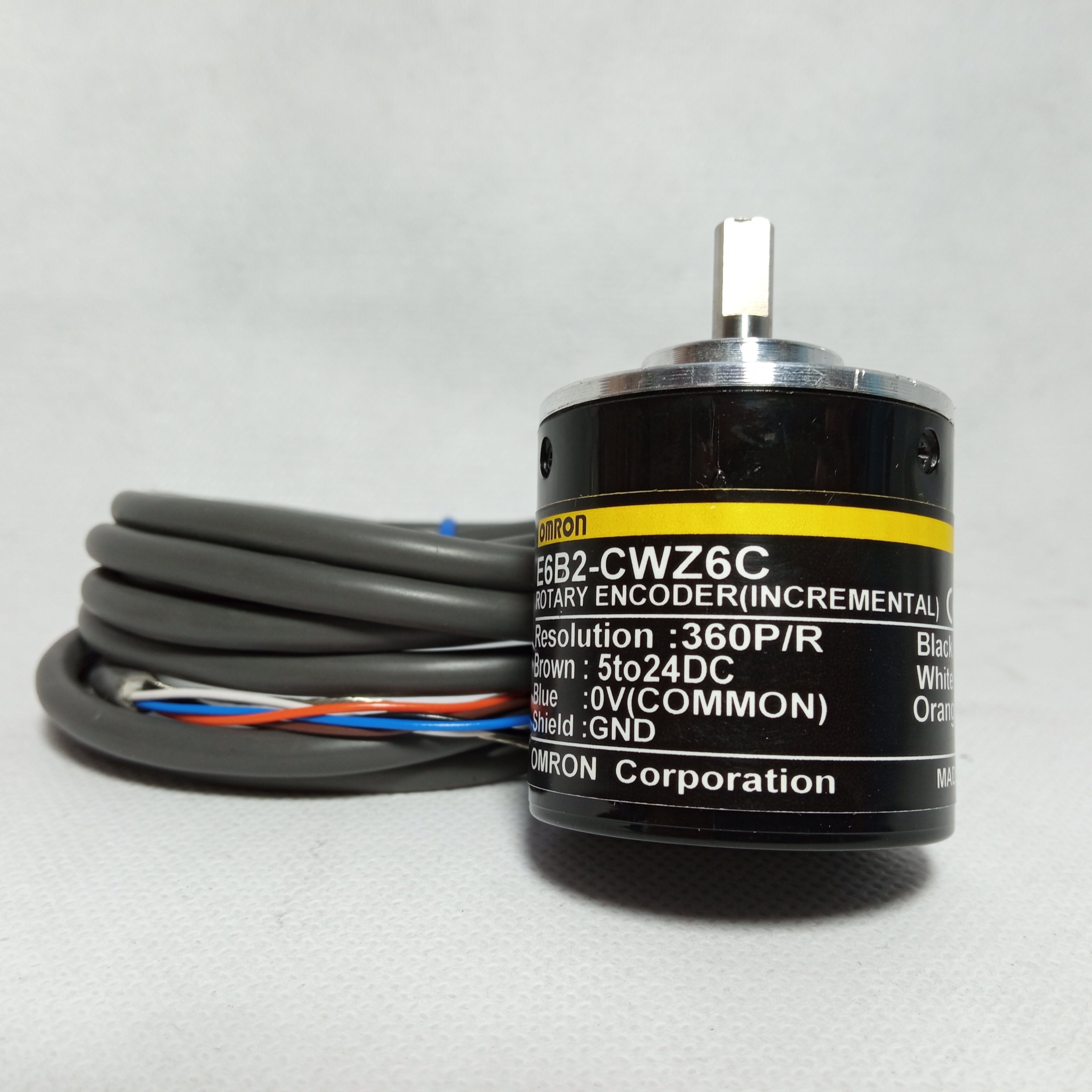

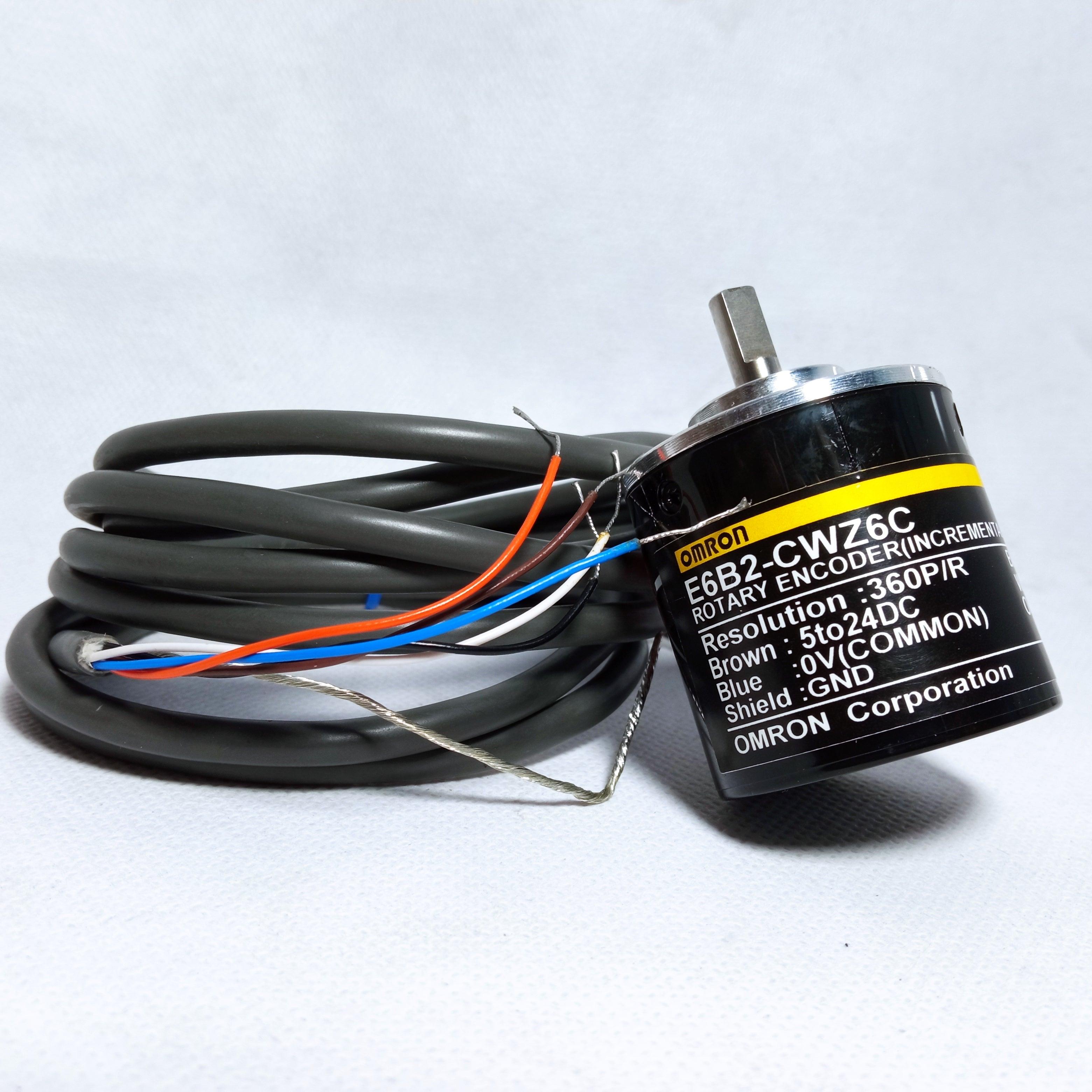

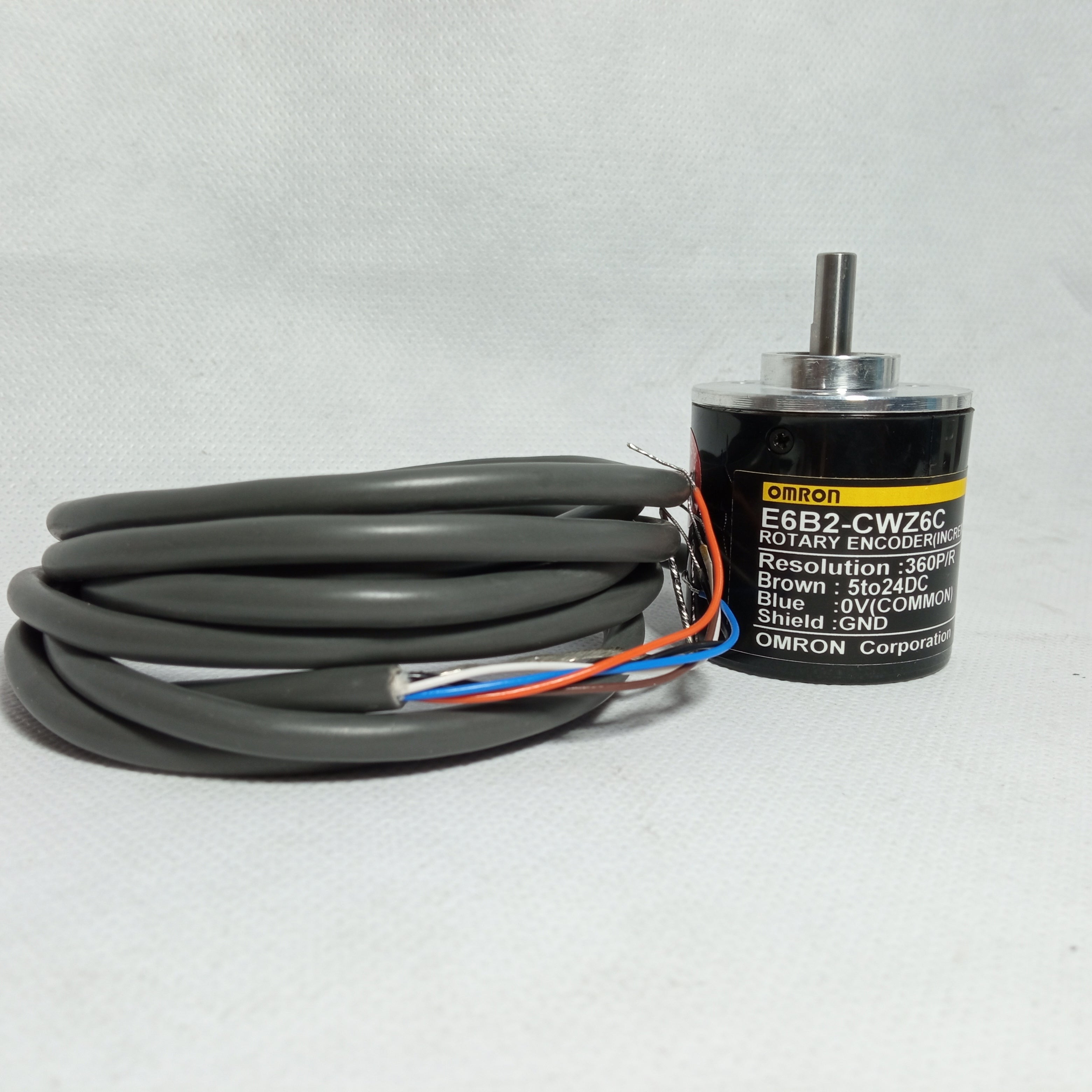

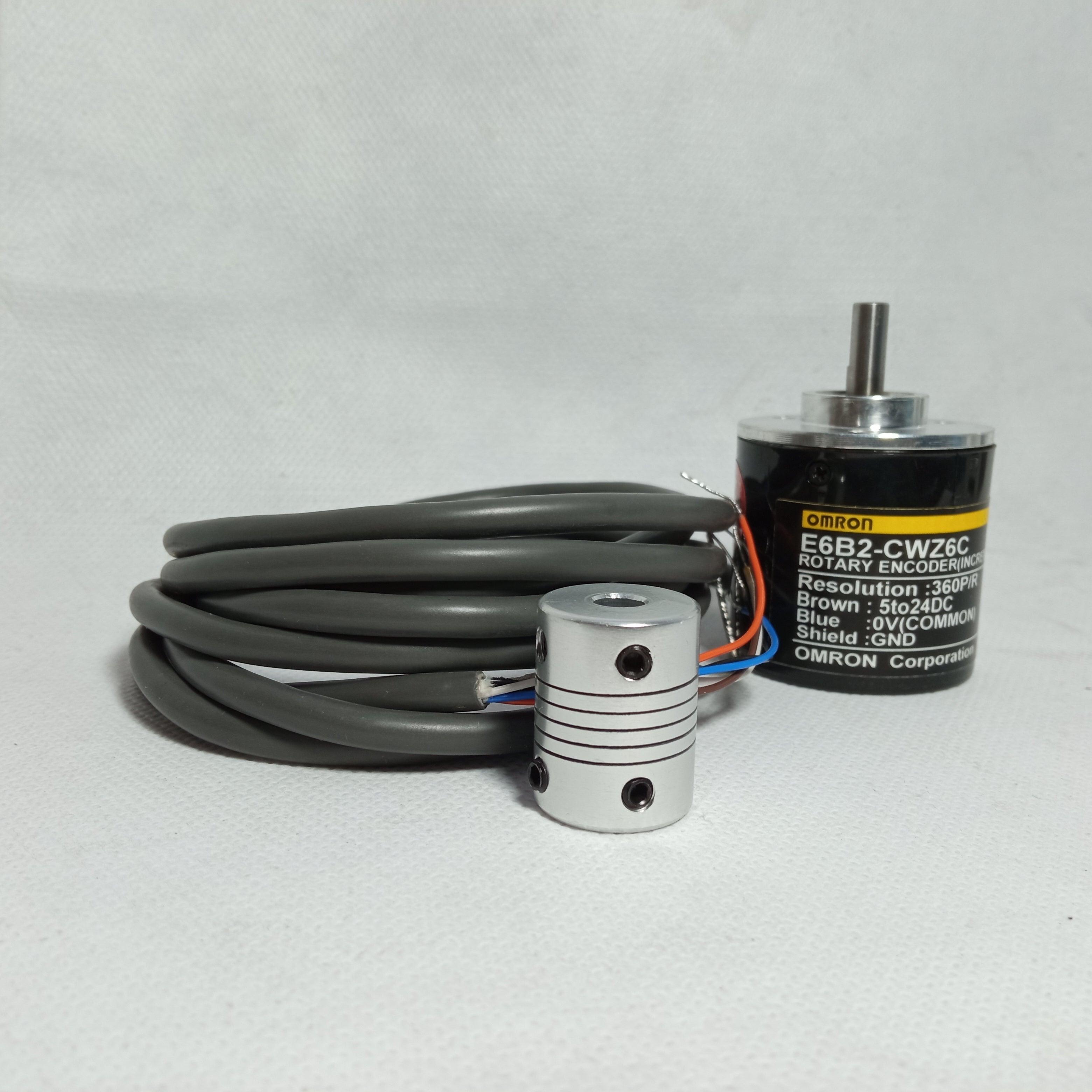

OMRON E6B2-CWZ6C Incremental Encoder The 360PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C is efficient and, first, designed for precise position detection. Moreover, it delivers accurate performance. Furthermore, it provides precise rotational data and, therefore, ensures smooth control. In addition, it maintains consistent signal output. Also, it guarantees high-speed response. Likewise, it operates reliably under various conditions. Besides, it resists vibration and dust. Consequently, it enhances operational accuracy. Then, it reduces maintenance requirements. Meanwhile, it ensures stability in automation systems. Hence, it improves productivity. Additionally, it offers strong durability, stable output, and excellent signal response. Features: Incremental shaft model with 360 pulses per revolution (P/R) Output phases A, B, and Z for high-resolution feedback Compact 40 mm diameter aluminum body NPN open collector output with short-circuit protection Equipped with starting positional point and reverse polarity protection High vibration and shock resistance (1000 m/s²) Easy pre-wired installation (2 m cable length) Specifications: Model: E6B2-CWZ6C Encoding Method: Incremental Resolution: 360 P/R Output Phases: A, B, Z Control Output: NPN open collector Power Supply Voltage: 5–24 VDC (-5% to +15%) Load Voltage: 30 VDC max Sink Current: 35 mA max Max. Response Frequency: 100 kHz Residual Voltage: 0.4 V max Starting Torque: 0.98 mN.m max Max Rotation Speed: 6000 r/min Operating Temperature: -10°C to +70°C Degree of Protection: IP50 Material: ABS case, aluminum body, SUS420J2 shaft Connection: Pre-wired (2 m cable) Uses: Ideal for industrial automation and feedback systems Suitable for CNC machines and robotics control Used in conveyor, packaging, and motor applications Helpful in detecting speed, angle, and direction of rotation Benefits: Provides high-precision and stable signal output Ensures reliable performance under vibration and load Reduces error and improves motion accuracy Offers easy installation and long operational life Enhances control efficiency and system performance Package Includes: 1 x 360PPR OMRON Incremental Rotary Encoder E6B2
