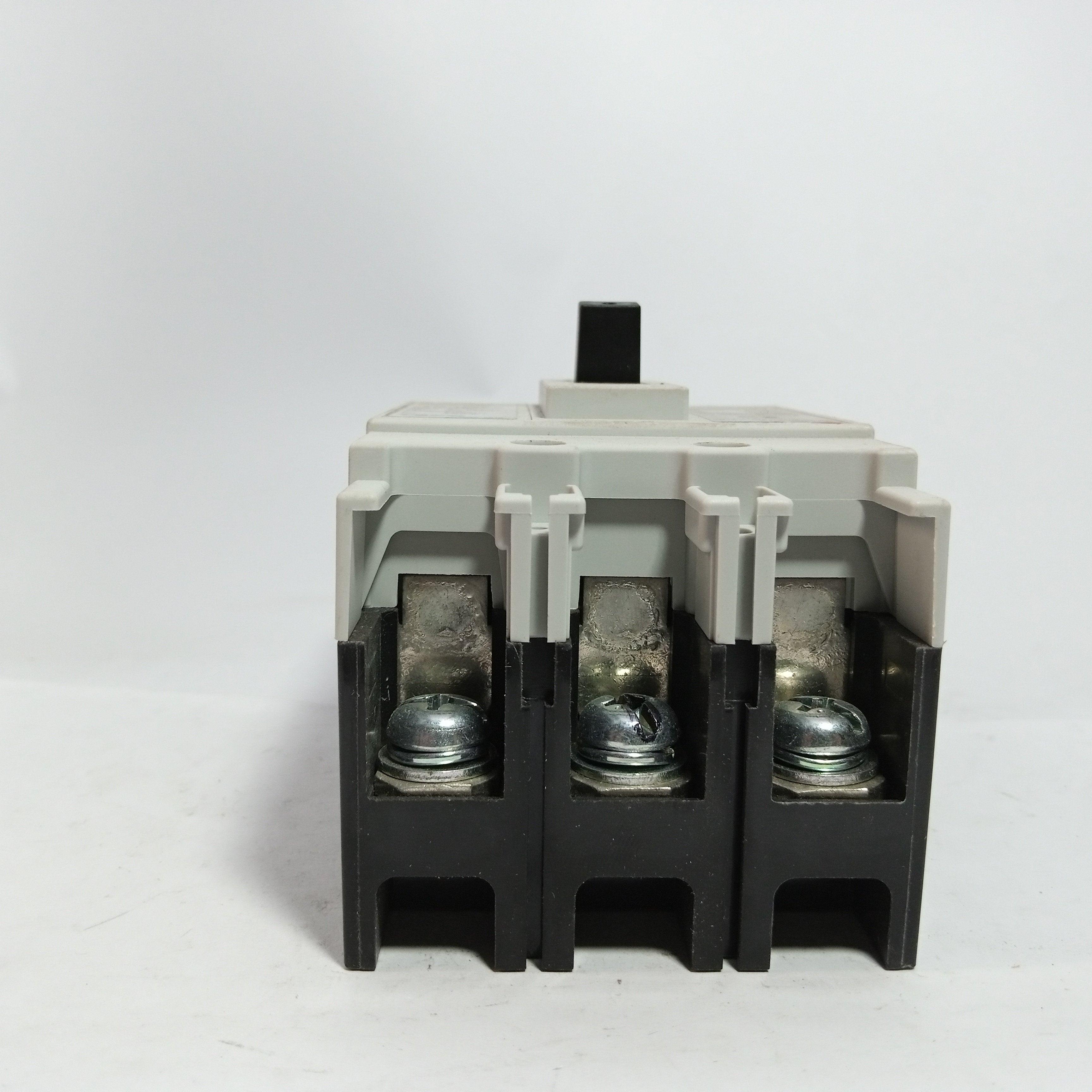

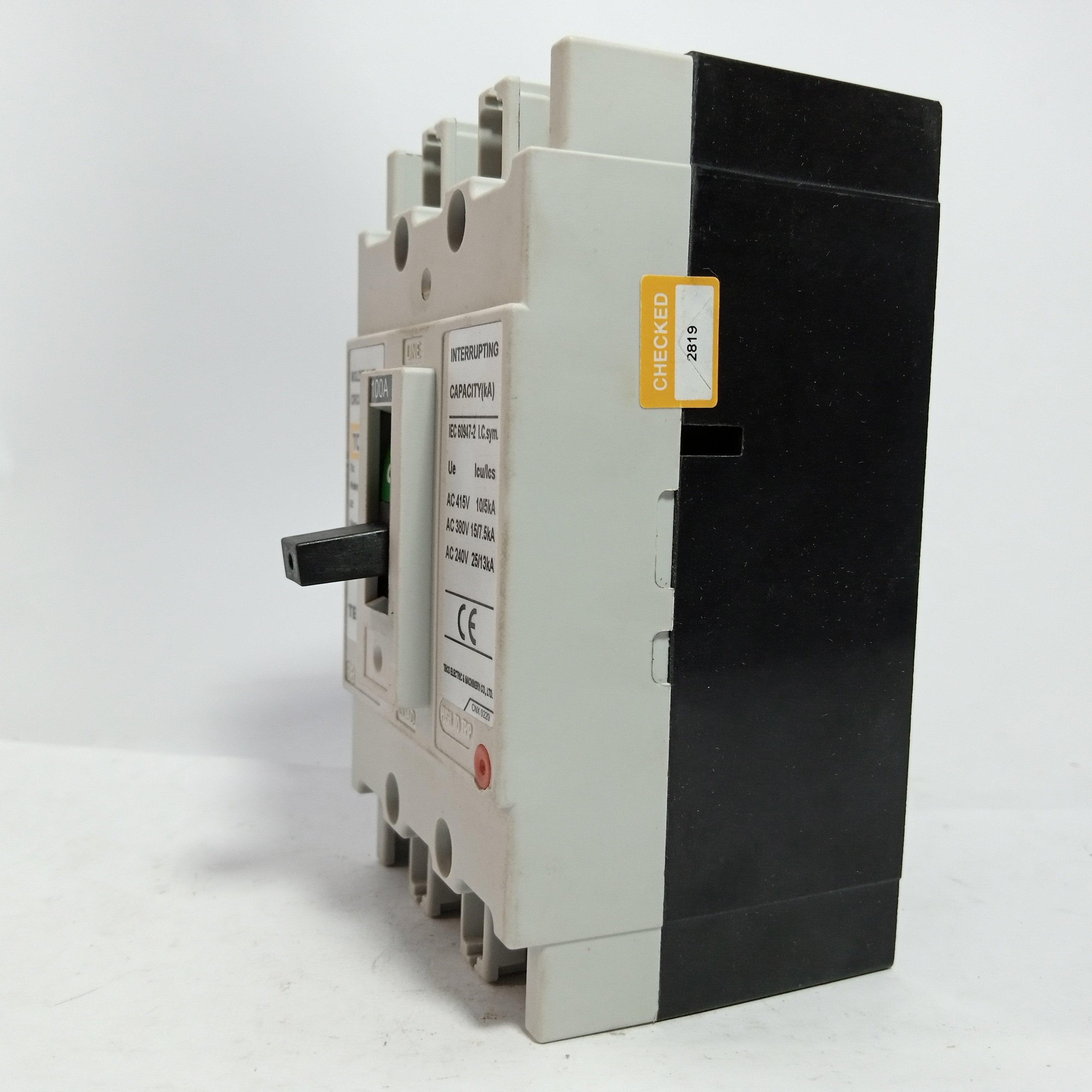

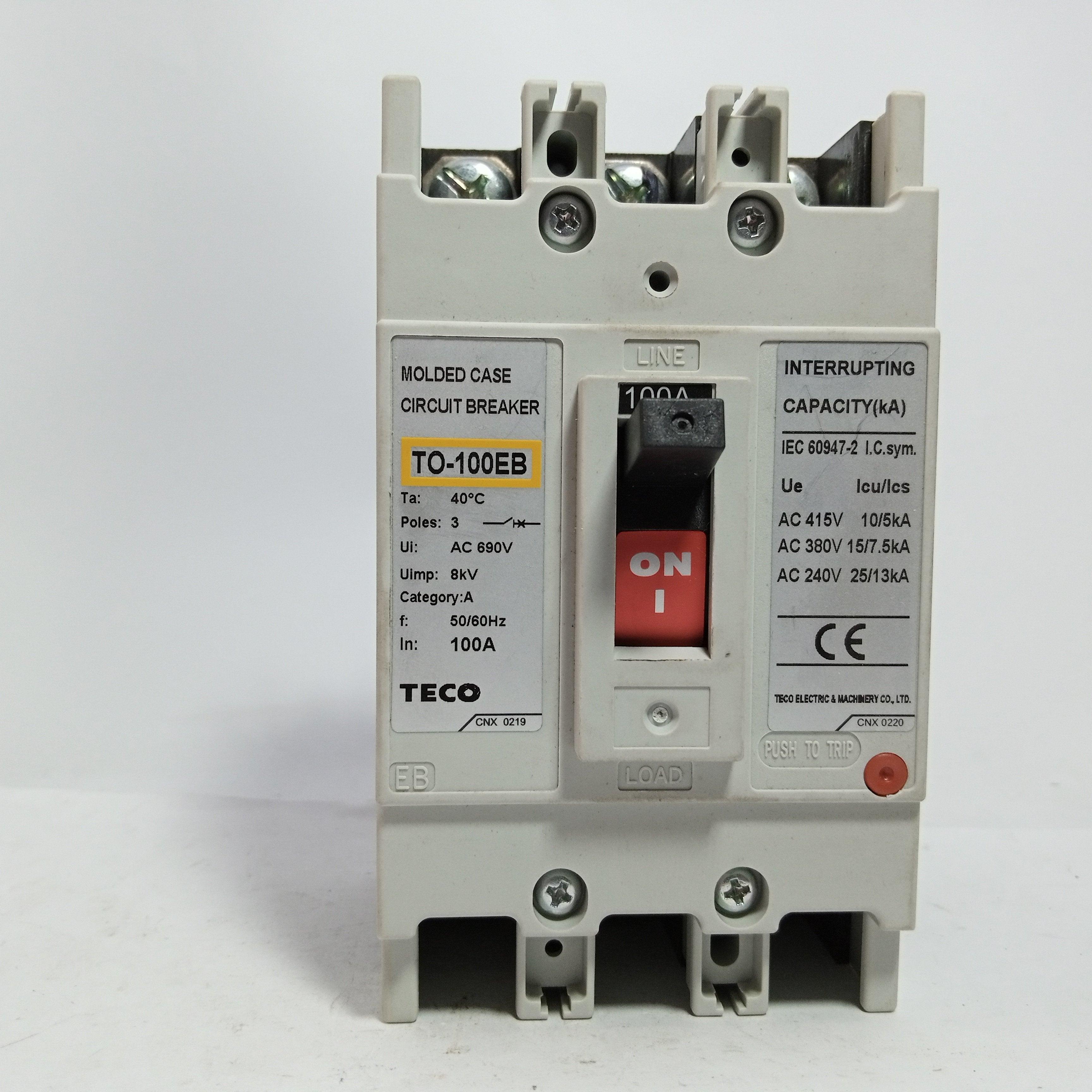

AC circuit breaker TO Series E type, 400V up to 15kA in Pakistan - 250A

AC circuit breaker TO Series E type, 400V up to 15kA in Pakistan BR5273 Description Regarding IEC standard for the handle? ON/OFF indication, our products from 600A and above Frame Sizes have been marked base color like red for ON and green for OFF. After tripping, our handle position is in the middle and showed half red and half green. There is a push-button of "Push to Trip" for confirmation if the trip mechanism or installed alarm switch is right or not. To avoid the people's misoperation after the contacts melt in the MCCB, our MCCB of TO-50E/100EC/100EB, 600A, and above frame sizes have the latest safety design of mechanisms, delivering the function of ISOLATION which ensure the handle not positioning to the trip or off position. Specifications: Electrical characteristics : AC, bipolar, DC, tripolar Operating mode: modular Other characteristics : rail, molded case current: Min 15 A Max: 225A VDC: Min: 125 V Max: 250 V VAC: Min: 230 V Max: 500 V
