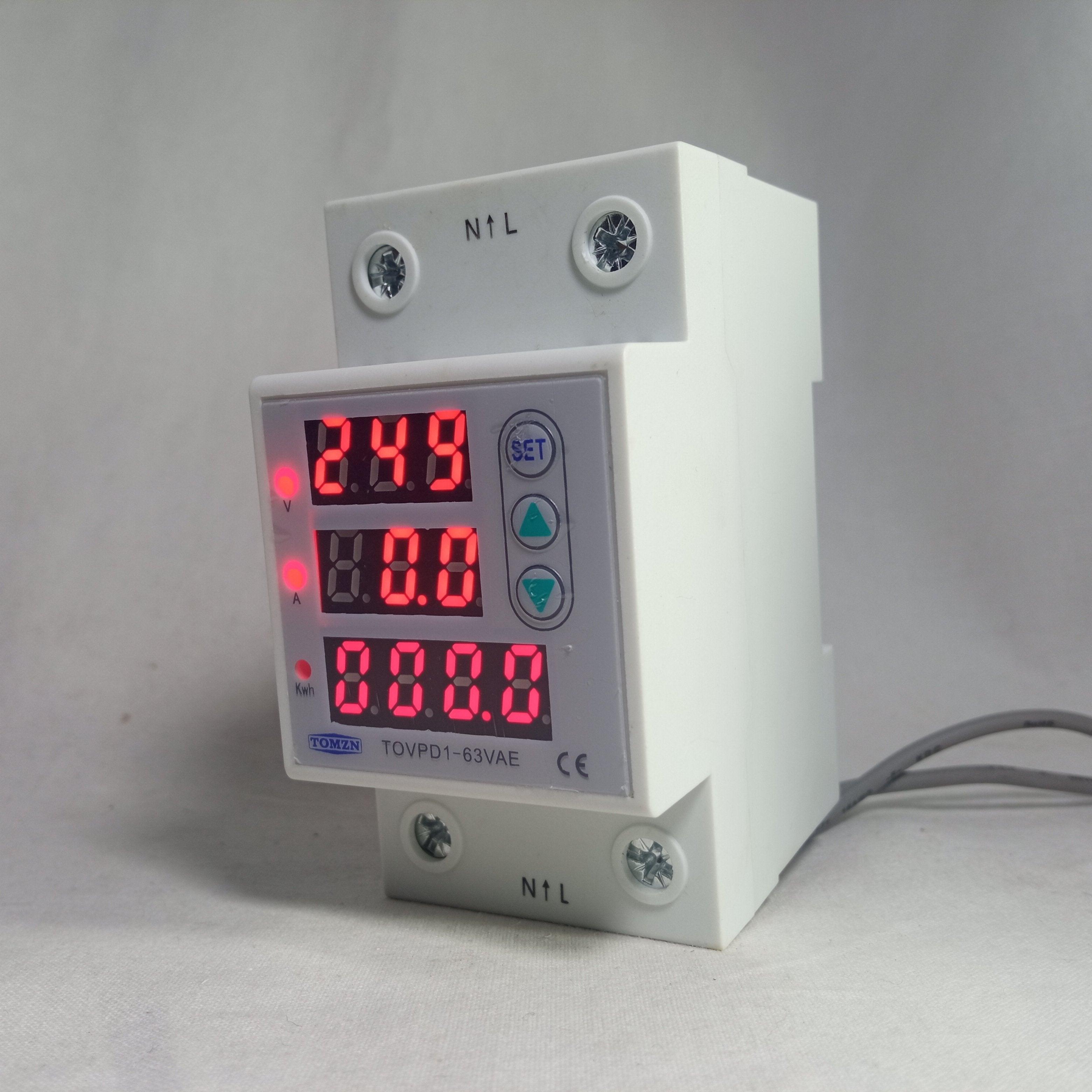

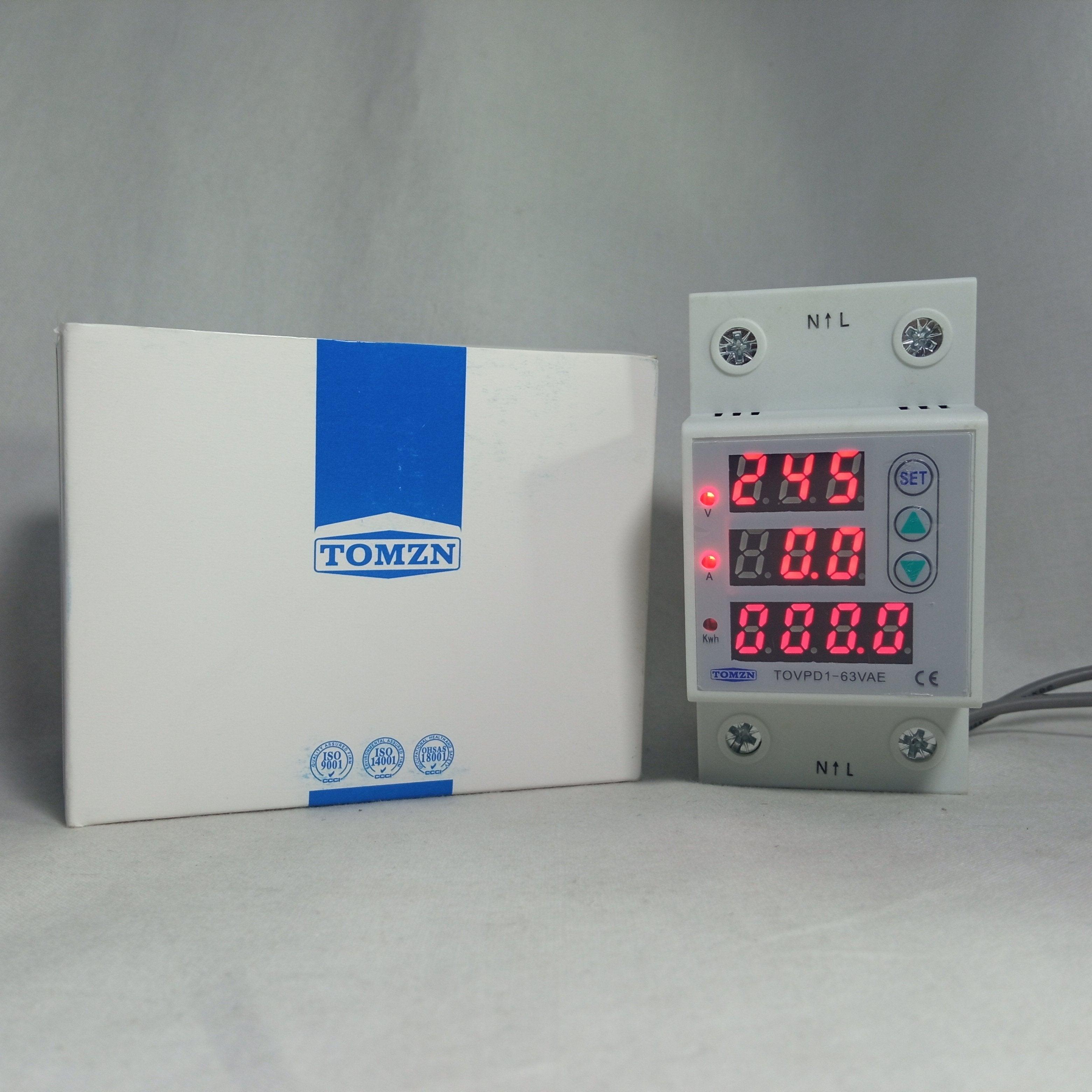

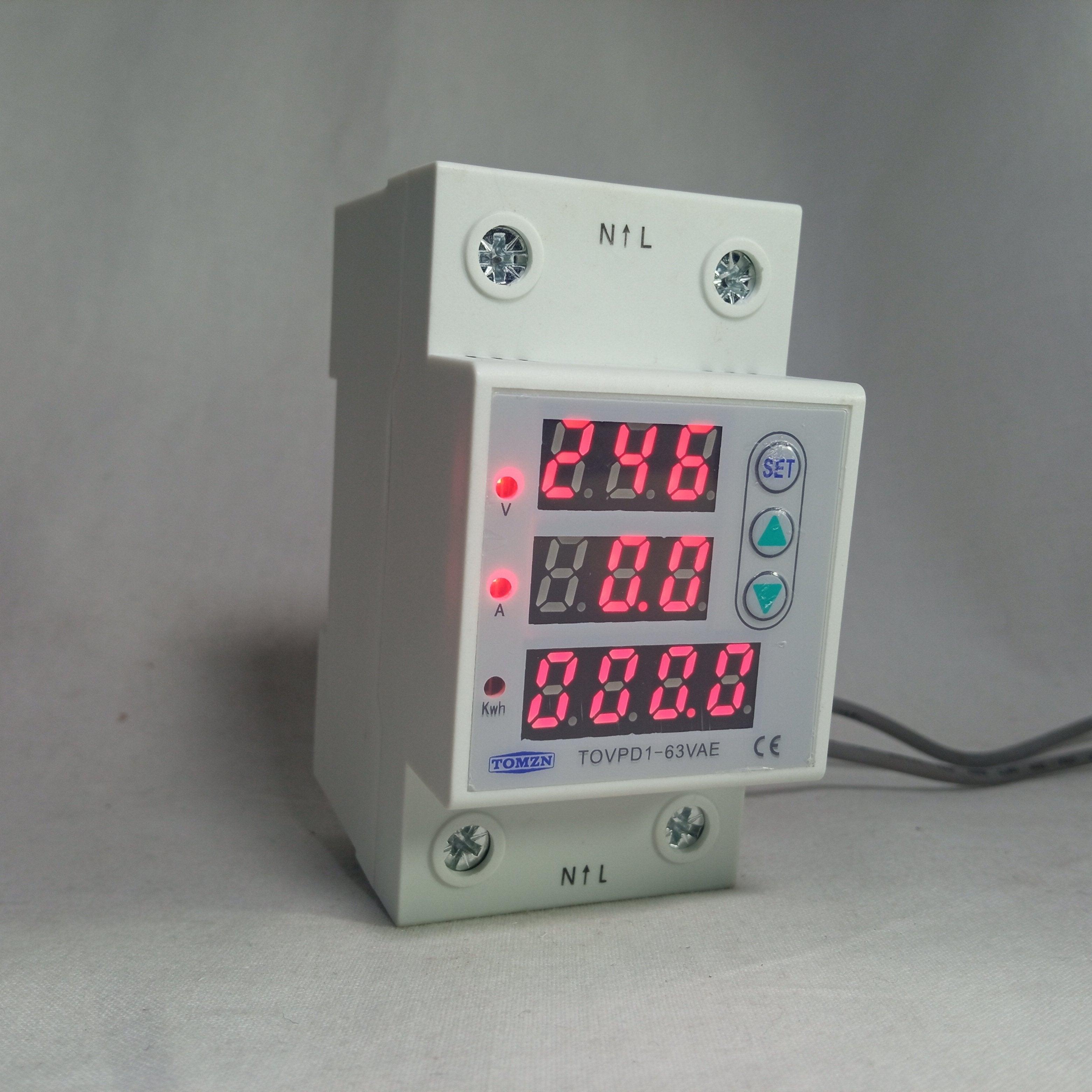

The DIN Rail Display Adjustable Over and Under Voltage Protective Device Relay is a smart electrical protection solution designed to safeguard equipment from voltage fluctuations. It continuously monitors power supply and disconnects the load during over-voltage or under-voltage conditions. Featuring an easy-to-read digital display and adjustable protection settings, it ensures precise and reliable control. Its compact DIN-rail mount design allows quick installation in distribution panels. Ideal for residential, commercial, and industrial systems, this relay enhances electrical safety and power stability.
Features:
Turn off over-voltage protection, press the up button when it reaches 300V
Turn off low voltage protection, press the button below when it reaches 150V
When off, the product can record Kw h, over-voltage, under-voltage, and over-current value.
When the V LED flashes, it means more or less voltage protection
When an LED flashes, it means over current protection.
Under-voltage protection 2 10V-145 V (adjustable) (default: 170 V) can be disabled
Overvoltage protection 230V-300V (adjustable) (default: 270) can be disabled
Over-current protection 1A-63A (adjustable) (default: 40A)
Reconnection time (delay to time): 3-300s (default: 30 s)
voltage meter
ammeter
energy meter
Specification:
Brand name : TOMZN
Rated voltage: 220V
Type : Mini
Can be customized : Yes
Model number : TOVPD1-63VEA
Over Voltage adjustable range : 230-300V adjustable
Under voltage adjustable range: 210-150V adjustable
Overcurrent adjustable range : 1-63A adjustable
Frequency: 50Hz / 60HZ
Uses:
Industrial electrical panel protection
Motor and machinery safety
Commercial building voltage monitoring
Residential electrical system protection
Voltage-sensitive equipment safety
Package Include:
1 x Din Rail Display Adjustable Over and Under Voltage Protective Device Relay
