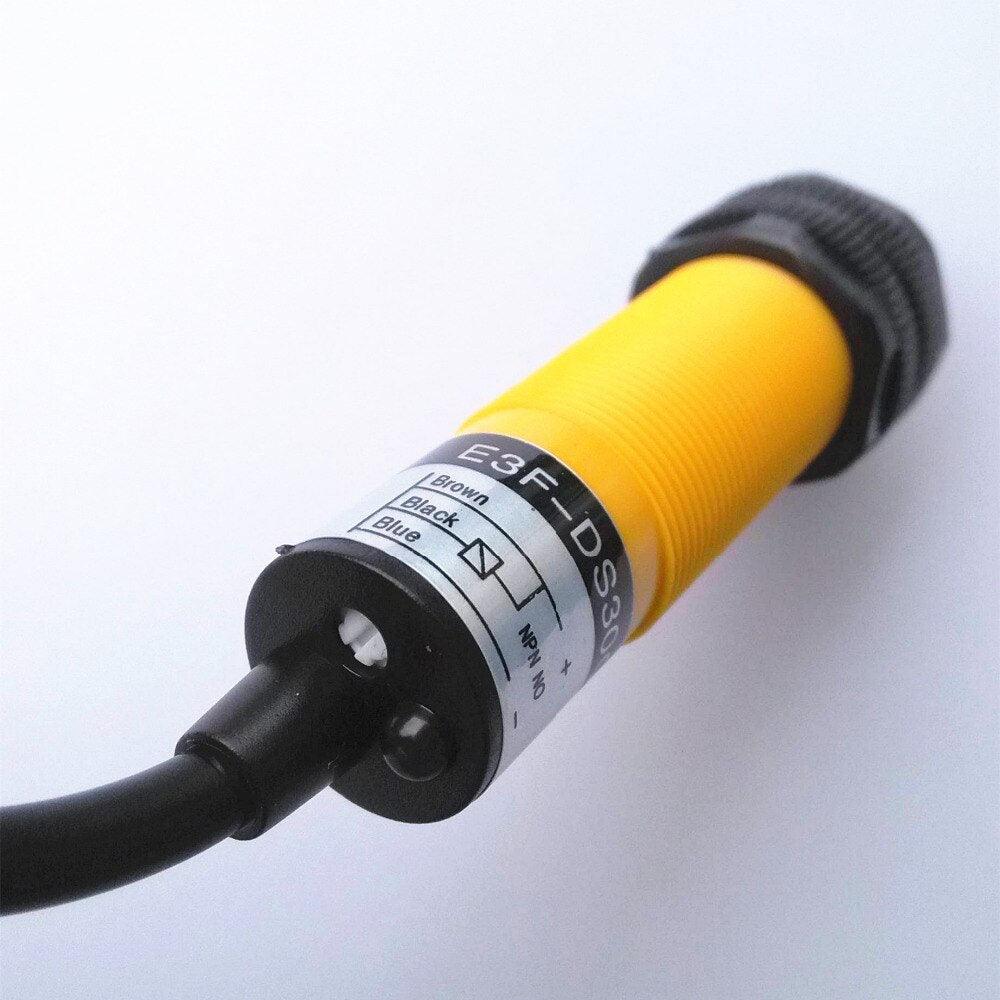

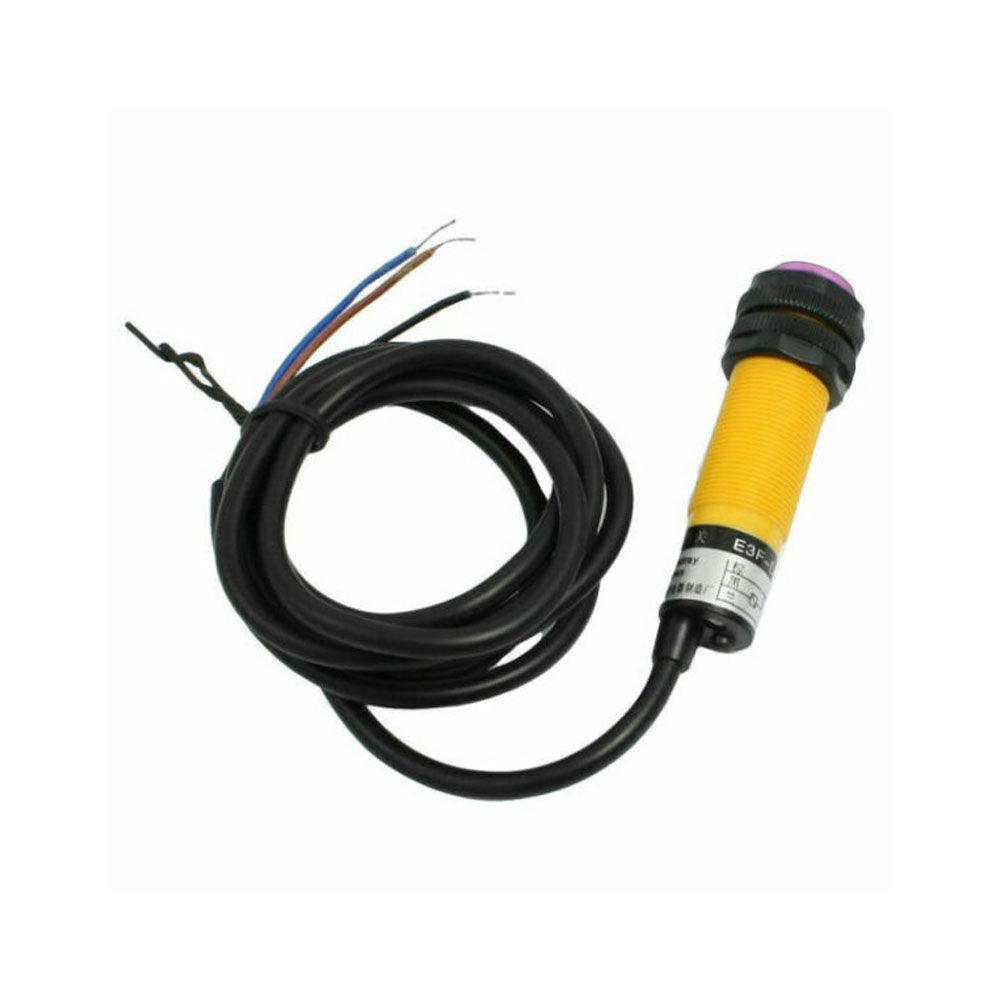

The E3F-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor is a reliable sensor for detecting objects without physical contact. It uses diffuse reflection technology to sense objects up to a certain distance with high accuracy. Moreover, it has a compact M18 body and simple 3-wire PNP NO connection for easy installation. Therefore, it is suitable for automation systems, conveyors, and machinery. As a result, it improves process efficiency and reduces mechanical wear. Features: Diffuse reflection detection for non-contact sensing Compact M18 cylindrical design High-accuracy sensing up to 30 cm 3-wire PNP NO connection for easy wiring Durable and reliable for industrial use Specification: Model number E3F-DS30B4 series External dimensions M18x1x67.5 Sensing method Diffuse reflective Detection distance 5-30cm Sensitivity adjustment Fixed Supply voltage 6-36Vdc; 90-250Vac, 36Vac, 380Vac 50/60Hz Rated output current N.P Type: 300mA max; A Type: 400mA; J type: 2A max (contact life: 100000 times) Sensing object Opaque object Response frequency 300Hz Response time 1.5ms max Light source Infrared LED (660 nm) Leakage current N.P Type: 20mA max; A Type: 1.7mA max Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor Insulation resistance 50 M? min. at 500 V DC between energized parts and case Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case Temperature influence ±10% max. of sensing distance at 23? within a temperature range of -25? to 60? ±15% max. of sensing distance at 23? within a temperature range of -30? to 65? Voltage influence ±10% max. of sensing distance in rated voltage range ±15% IP Rating IP67 Material Case: ABS; Sensing surface (lens): PMMA Operating temperature -30 to 65 °C (with no icing or condensation) Operating humidity Storage: 35% to 95% (without condensation) Uses: Object detection on conveyors and assembly lines Automation machinery control Counting or positioning applications Industrial process monitoring Non-contact sensing in workshops and factories Packages Include: 1 x Diffuse Reflection Photoelectric Sensor PNP NO Industryparts. pk is the Online Shopping website for E3F-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor 3 Wires PNP NO. Here you get E3F-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor 3 Wires PNP NO at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
