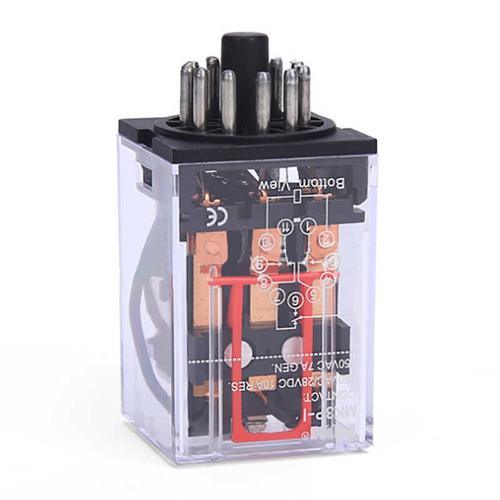

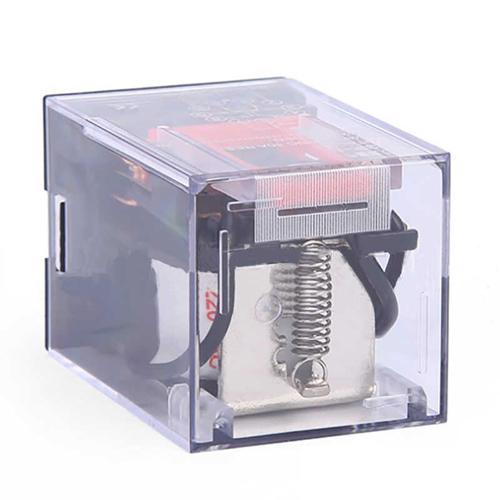

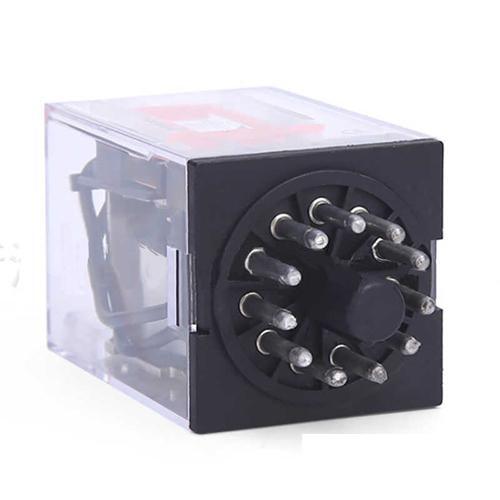

Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC

Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC in Pakistan BR4921 Description Electromagnetic relays are those relay which operates on the principle of electromagnetic attraction. It is a type of a magnetic switch which uses the magnet for creating a magnetic field. The magnetic field then uses for opening and closing the switch and for performing the mechanical operation. Specifications: model - MK3P-1; rated coil voltage - 110 VAC; contact system rated voltage - 250 VAC; 28 VDC; contacts load capacity - 10 A (NO), 5 A (NC); contact load capacity (inductive load) - 7 A; power factor (inductive load) - 0.4 A; contacts configuration - 3PDT – 3NO+3NC; number of pins - 11; mounting -  relay socket 11 pins; contacts resistance - < 230 mOhm; dimensions - 34x34x52 mm; sockets - PF113A, PF113A-E, US-11
