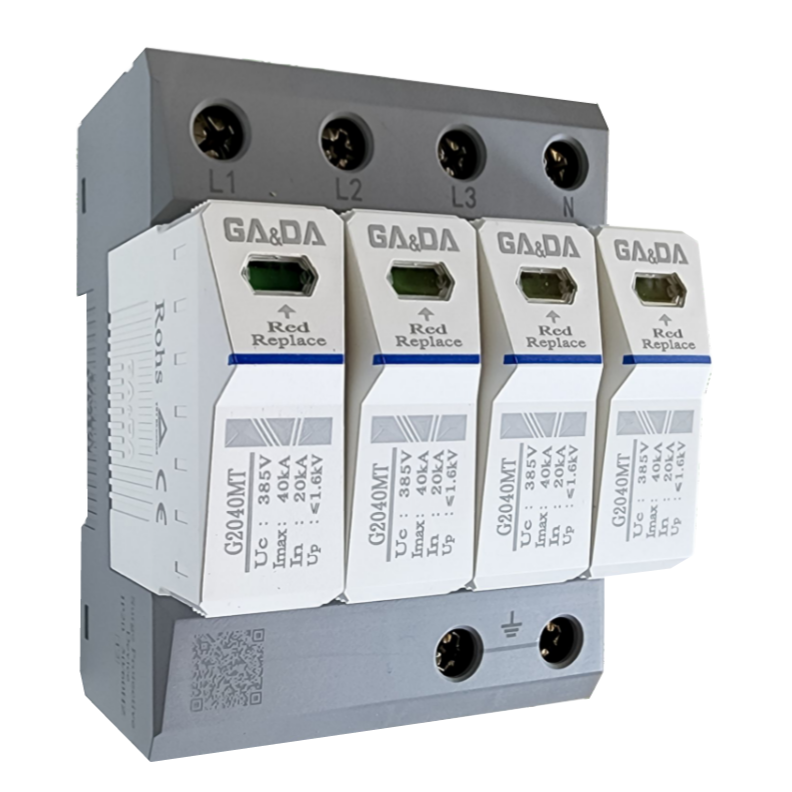

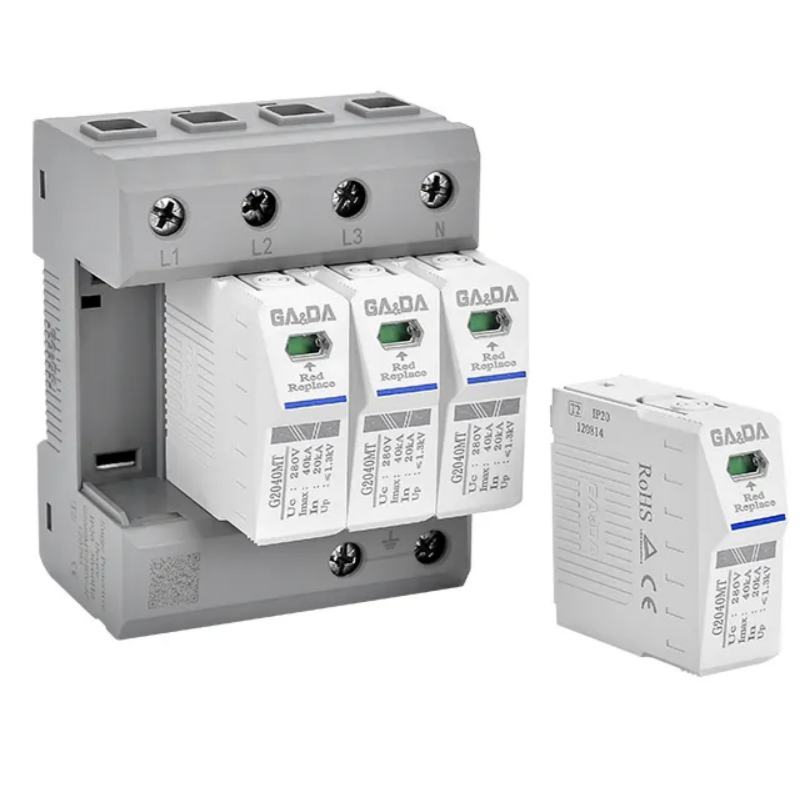

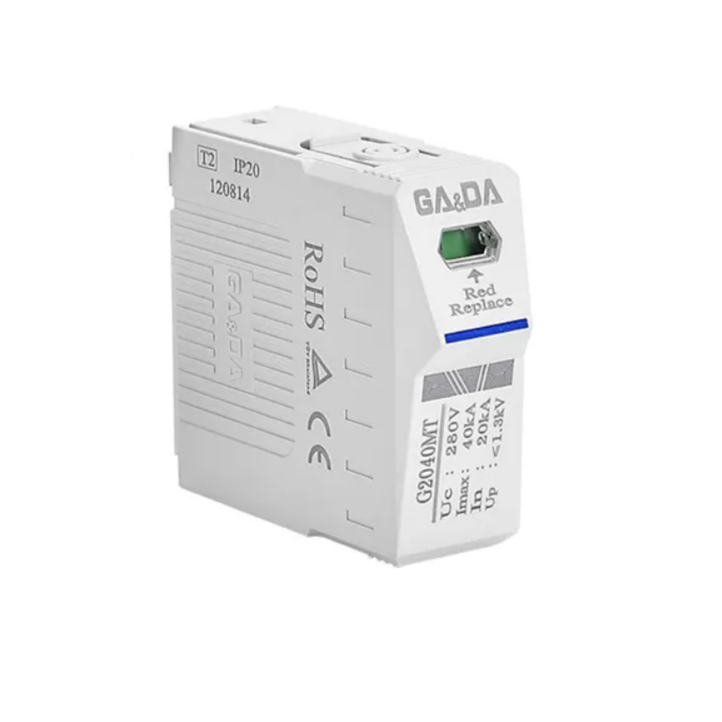

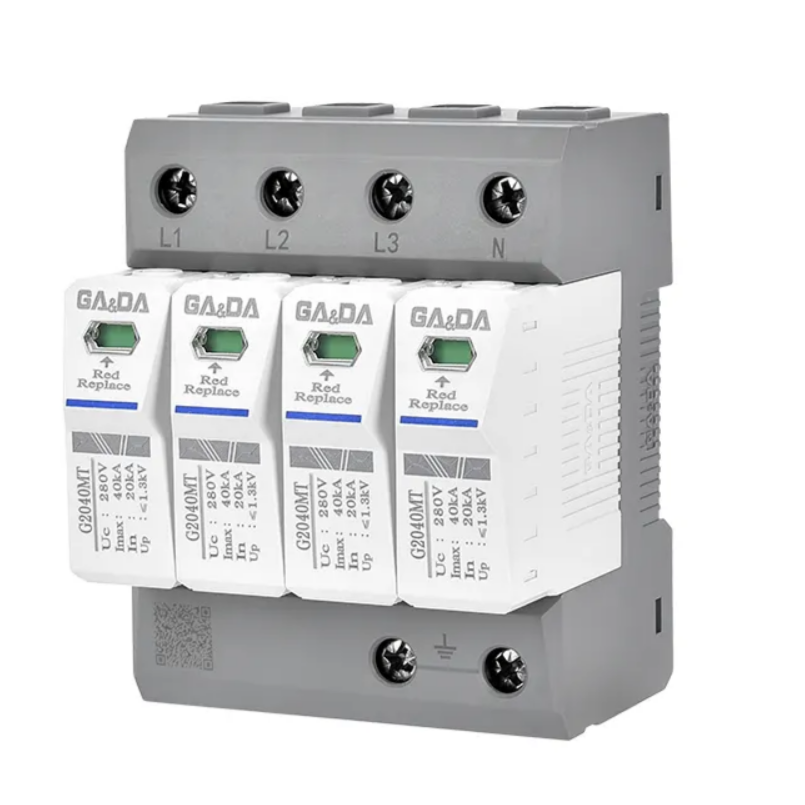

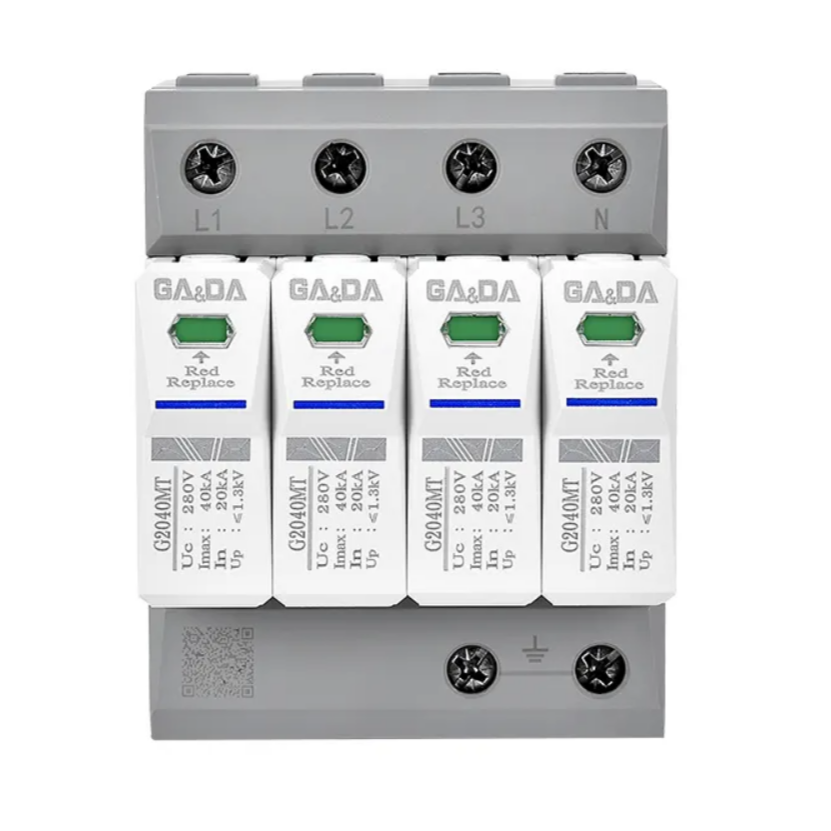

The GA&DA G2040MT/385-4P, 280-4P Surge Protective Device (SPD) is a high-quality and reliable device that is designed to protect electrical and electronic equipment from the damaging effects of surges. It features a compact and durable design, making it easy to install and maintain. The SPD also has a high surge current rating and a low let-through voltage, making it effective in protecting equipment from even the most severe surges.
Features:
Compact and durable design
High surge current rating (40kA)
Low let-through voltage (<1.5kV)
Suitable for use in AC systems with a voltage of up to 385V AC or 280V AC
Meets IEC 61643-11 standards
Remote monitoring and alarm function
Specification:
Voltage rating: 385V AC or 280V AC
Surge current rating: 40kA (8/20μs)
Let-through voltage: <1.5kV
Connection type: screw terminals
Dimensions: 100 x 50 x 35mm
Weight: 200g
Length: 100mm
Width: 50mm
Height: 35mm
Uses:
Electrical and electronic equipment
Computers
Telecommunications equipment
Industrial controls
Medical equipment
Any other application where protection from surges is required
Package includes:
GA&DA G2040MT/385-4P, 280-4P Surge Protective Device (SPD)
