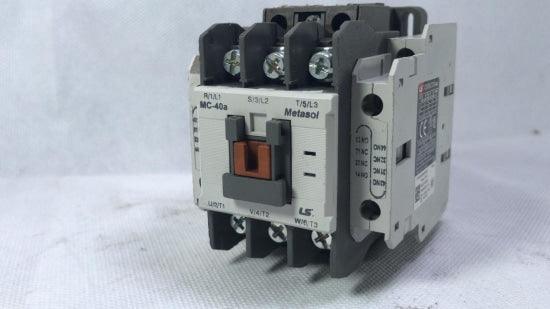

LS Electric Metasol Contactor MC-40A-AC240 in Pakistan BR8221 Description Metasol Contactors are designed to show superior technology , offering an economical solution with a compact size and easy connection. The sealed structure has improved its safety features so that no arc flash is exposed. Features: 3-pole(NO) main contact Finger proof design DIN rail or screw mountable AC or DC control in different physical size Front/side mountable accessories are available Direct mountable overload relay available Rating 1NO and 1NC Auxiliary contact built-in as standard. Specifications: Number of Poles 3 Rated Operational Voltage, Ue 690V Rated Insulation Voltage, Ui 1000V Rated Frequency 60Hz Rated Impulse Withstand Voltage, Uimp 8kV Resistive Load (AC1) 60 Maximum Operations per Hour (AC3) 1800 Mechanical Durability 12,000,000 Electrical Durability 2,000,000 Auxiliary Contacts (standard) 2 N.O. / 2 N.C. Conductor Size (solid/stranded) 65/75°C Cu - wire only 10 - 6 AWG 2 conductor maximum RoHS Compliant Standards UL508 File # E108780 / E206826, CE
