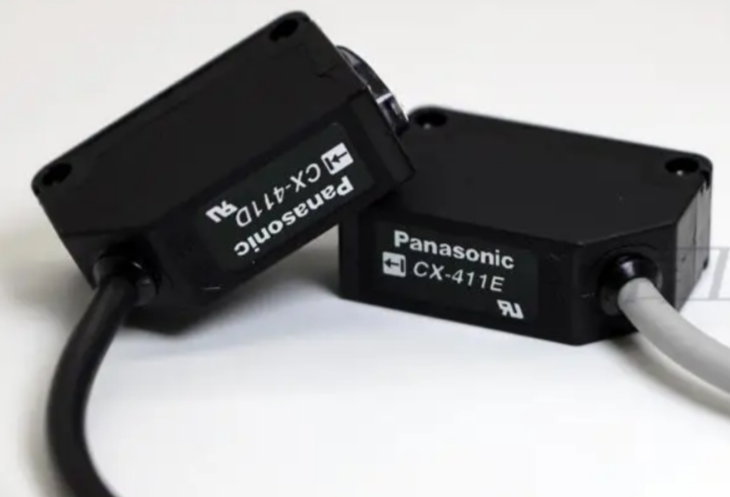

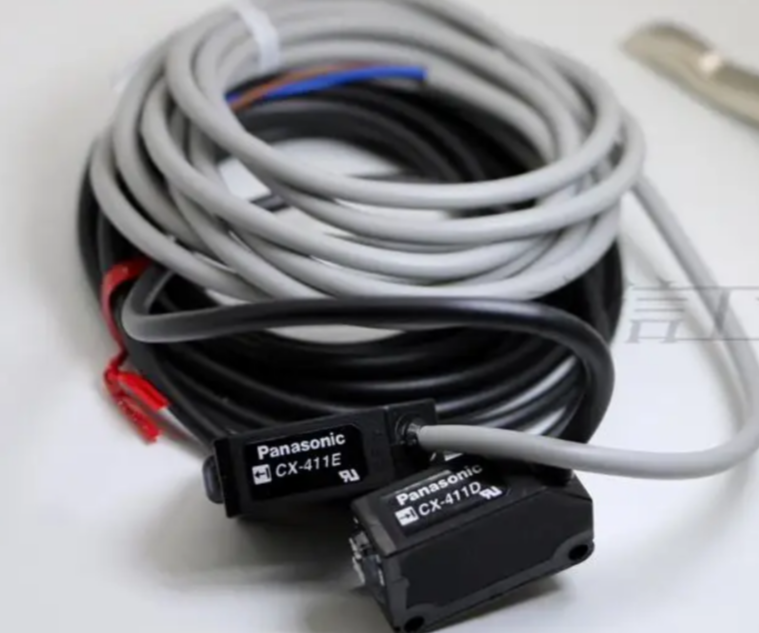

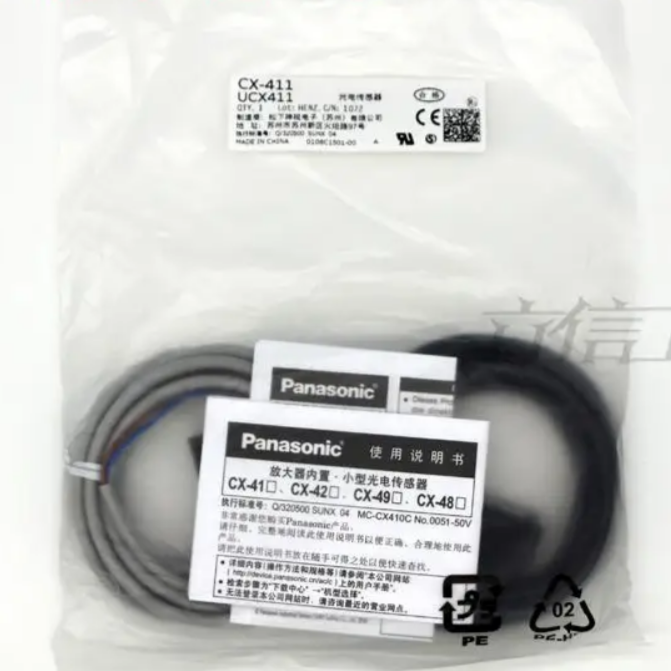

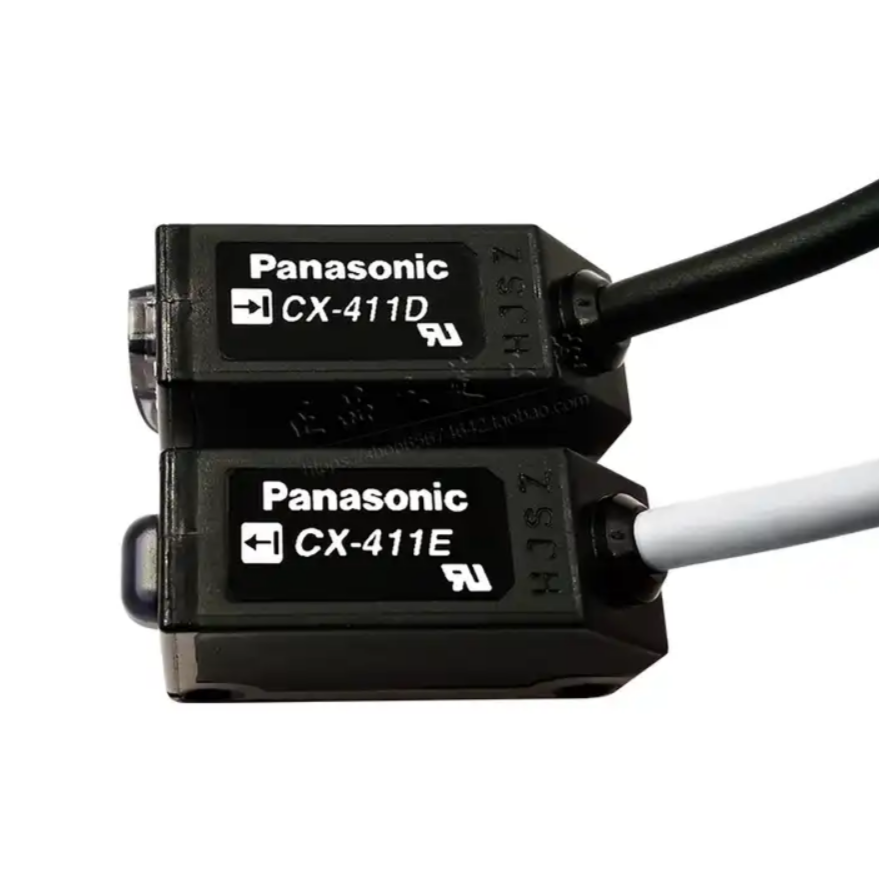

The Panasonic CX-411 (CX-411D+CX-411E) Beam Type Photoelectric Switch and Sensor is a compact and versatile sensor that can be used for a variety of applications. It is a thru-beam type sensor, which means it uses two separate units, the emitter, and the detector, to detect the presence or absence of an object. The emitter emits a beam of light, and the detector detects the presence or absence of this beam. If the beam is broken, the sensor outputs a signal. Features of Panasonic (CX-411D & CX-411E) Beam Type Photoelectric Switch and Sensor: Compact and versatile design Thru-beam type sensor Detects the presence or absence of an object Easy to install and use High resistance to effects of coolants and oils 1-turn Potentiometer adjustment Ø12mm minimum sensing opaque target 0. 5mm repeatability Specification of Panasonic (CX-411D & CX-411E) Beam Type Photoelectric Switch and Sensor: Sensing distance: 10 meters Output type: NPN Light source: Red LED Operating temperature: -25°C to +55°C Dimensions: 31mm x 11mm x 20mm Weight: 0. 3kg Power supply: 24V/12V DC Current consumption: 10mA Protection class: IP65 Uses: Presence or absence detection Conveyor belt control Liquid level detection Packaging machine control Robotic applications Material Handling Presence detection in industrial machinery Safety light curtains End of travel detection Package includes: One emitter unit (CX-411D) One detector unit (CX-411E) Mounting hardware User manual
