Pt100 sensors are the most common type of platinum resistance thermometer . ... 100 refers to that at 0°C sensors has a resistance of 100 ohms (Ω). A resistance thermometer is a type of temperature sensor. It consists of an element that uses resistance to measure temperature.
Features:
Ceramic measuring resistors 1 x Pt100, wire-wound
Built into stainless tube W.St.1.4571, electro-polished

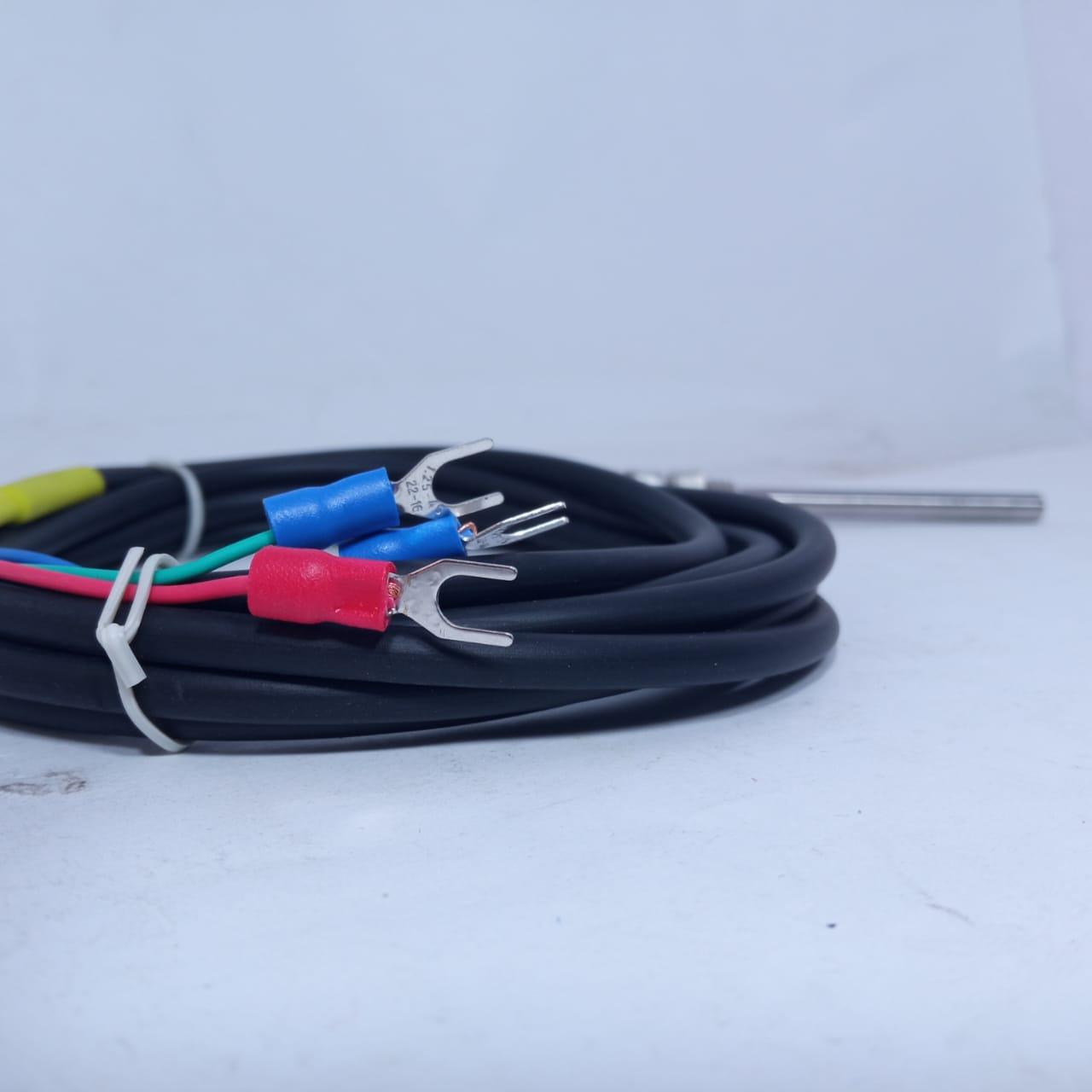

3-wire connection
Meets IEC 751
Although declared as class B, most meet the requirements of class A (±0.15 °C @ 0 °C)
Factory tested with SCS calibrated measuring equipment
Specifications:
Type Resistance Sensor
Temperature Measuring Range Min . 0 °C
Temperature Measuring Range Max . 300 °C
Accuracy 0.15°C
Thermometer Output Type Pt100
Lead Length 2 m
Probe Length 100 mm
Housing Material Stainless Steel
Package Includes:
1 x Resistance Sensor PT100
