Semience Magnetic Contactor 3RT1023-1A

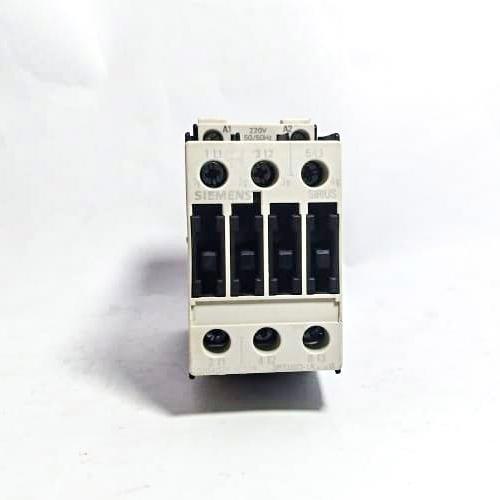

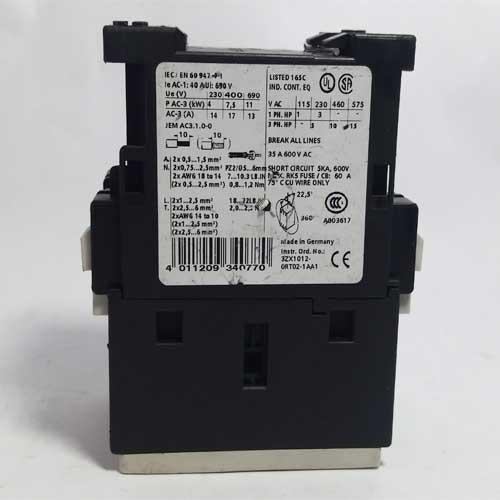

Semience Magnetic Contactor 3RT1023-1A in Pakistan BR4653 Description: The Siemens Sirius line of 3RT1023-1A contactors is suitable for use wherever a 3 pole, IEC, UL, and CSA rated contractor is appropriate. This size S0 contactor is used in applications up to 15 horsepower at 460v for three-phase applications. Additional auxiliary contacts, up to four poles, can be added on the top or side of the contactor. In addition to auxiliary contact blocks, thermal magnetic or solid-state overload relays can be added to these Siemens contractors to provide full motor starter protection in the case of an over amperage situation. For mounting purposes, the contactors can either be mounted directly on a standard 35mm DIN rail or screwed directly onto the back of the panel or mounting plate. Features: Siemens Size S0 contactor Can be fitted with any 1-, 2- or 4-pole 3RH1921 auxiliary contactor for up to 4 additional contacts For motor protection, a 3RU1126 thermal overload or 3RB2026 Solid State overload relay can be directly mounted Mounts on standard 35mm DIN rail or can be screw-mounted This contactor comes with screw termination - please call for spring/cage clamp terminals The Sirius line can be fitted with optional varistors, surge suppressors or RC elements Specifications: Part Number 3RT1023-1A Manufacturers Siemens Sub-Category Contactor Family Sirius Type 3RT10 Phase 3 Poles 3 Voltage 600 Amperage 9 Coil Voltage Max 120
