A surge protector is an appliance or device intended to protect electrical devices from voltage spikes in alternating current (AC) circuits. A voltage spike is a transient event, typically lasting 1 to 30 microseconds, that may reach over 1,000 volts.
Features:
Could be replaced for the module does not need a power cut.
The maximum current to endure the lightning stroke is 50kA.
The color of the visible window shows the operating status, green means normal, and red means abnormal.
Specifications:
Brand Name: Suntree
Model Number: SUP1
Type: SUP1-40 AC Surge Protector
Response Time <25ns
TECHNICAL SPECIFICATION
Discharge Current 20~400kA
GENERAL SPECIFICATION
Combination type 4P
Working Voltage 230/400V, AC
Uses:
Protects electrical panels from lightning surges
Safeguards household and office equipment
Used in industrial power distribution systems
Prevents damage from transient overvoltage
Enhances safety and system reliability
Package Includes:

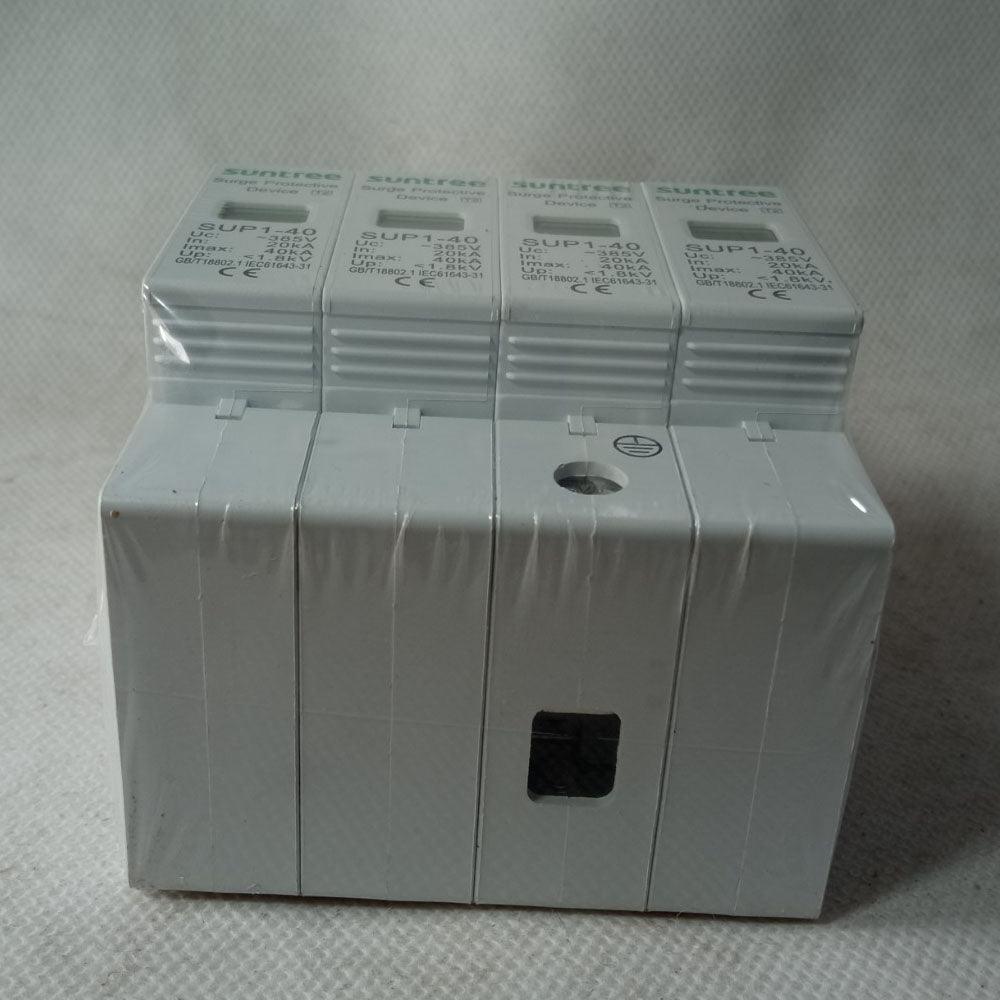

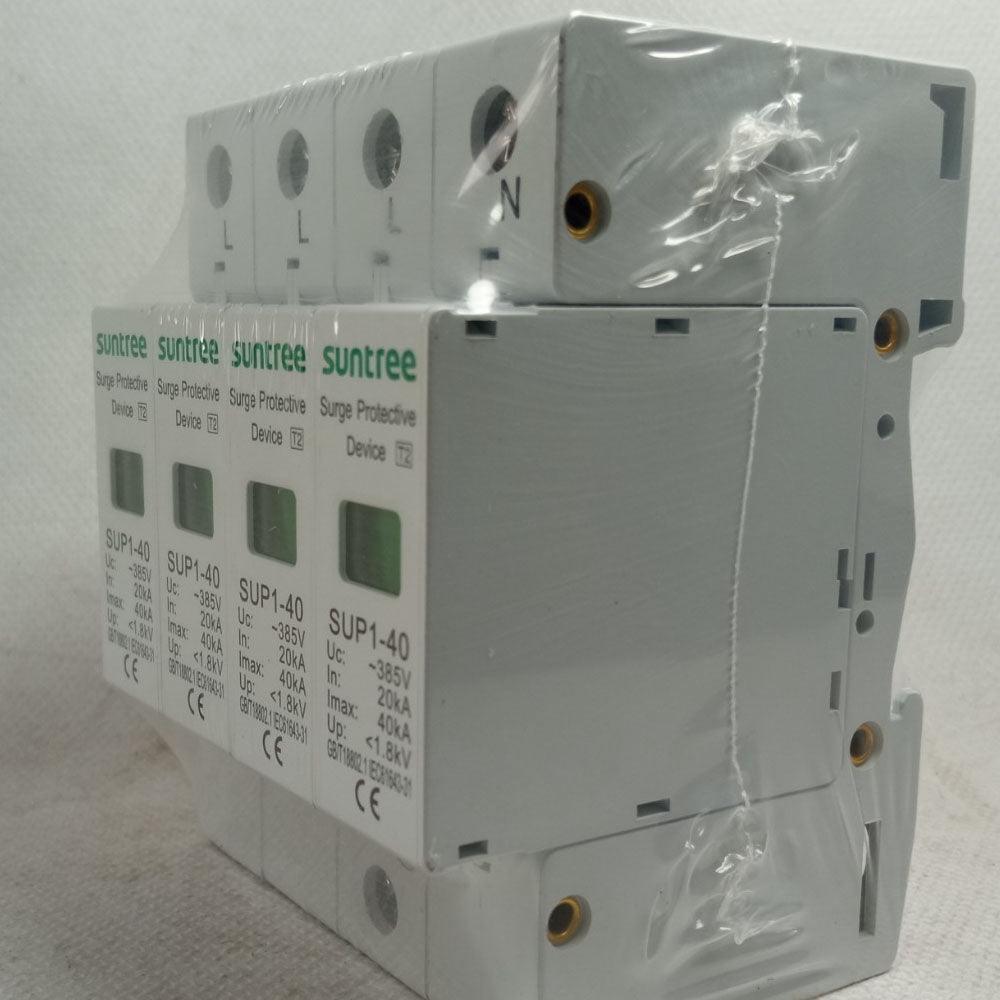

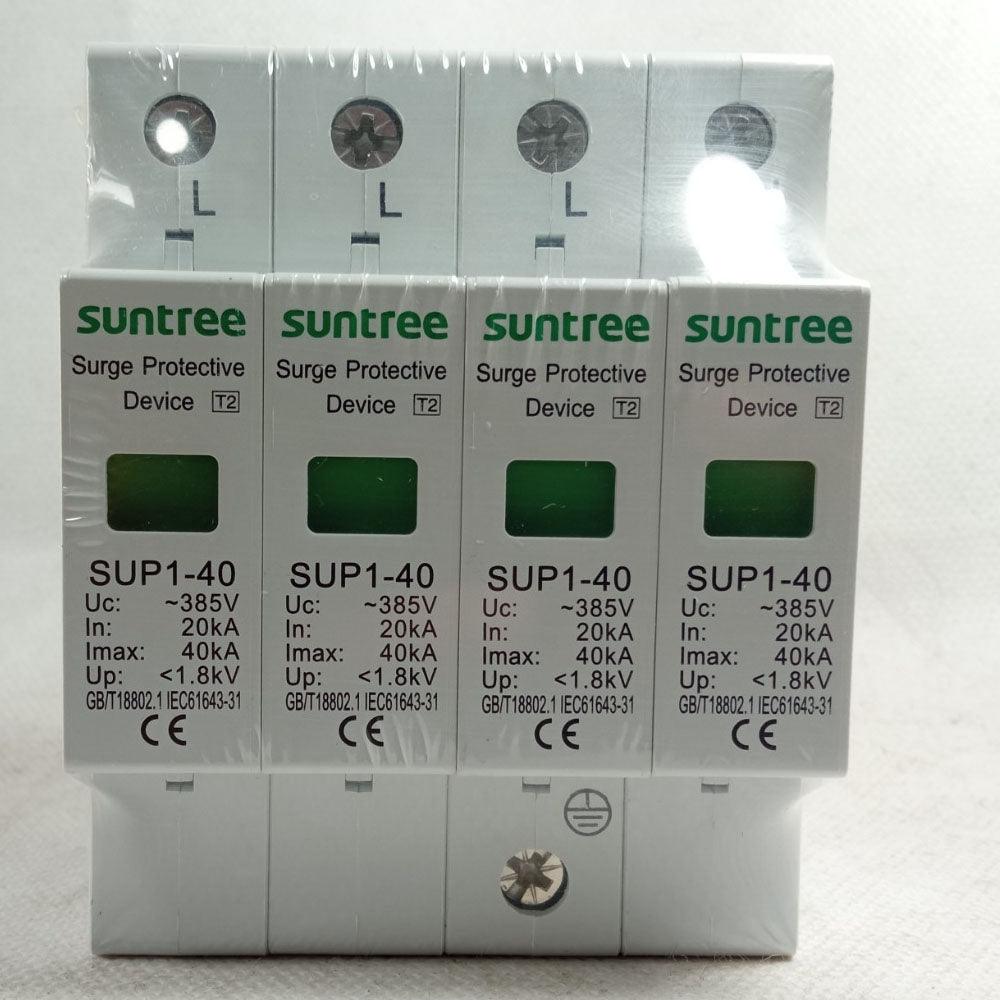

1 x Suntree SUP1-40 AC Surge Protector Lightning Protection Safety Protector SPD
