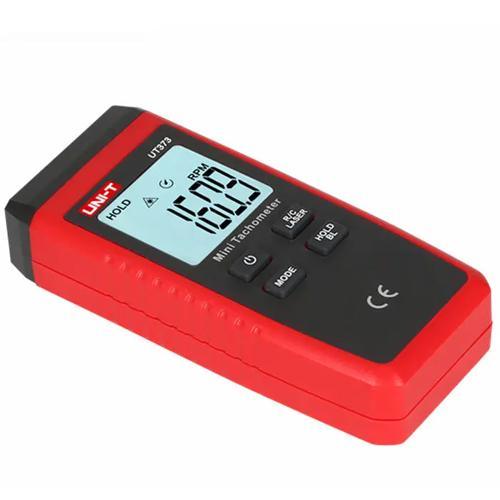

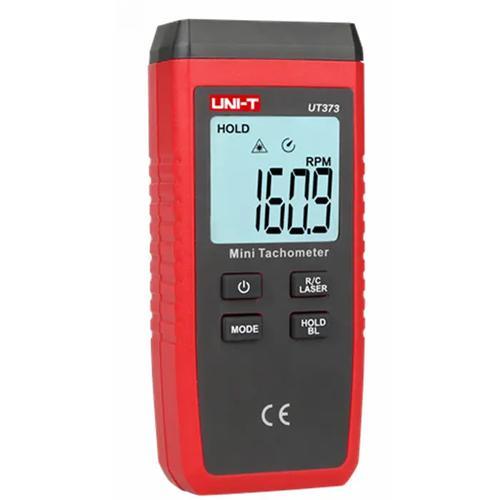

The UNI-T Mini Tachometer RPM Meter UT373 is a compact and reliable non-contact measuring instrument designed to accurately measure rotational speed (RPM) of motors, fans, shafts, and rotating machinery. Using laser technology, this tachometer allows safe RPM measurement without physical contact, making it ideal for industrial and maintenance applications.
The UT373 digital tachometer features a clear LCD display that shows fast and precise RPM readings. Its lightweight and handheld design makes it easy to use in tight or hard-to-reach spaces. This device is widely used by technicians, engineers, and maintenance professionals for diagnosing machine performance and ensuring optimal operating speed.
UNI-T is a globally trusted brand known for quality testing instruments, and the UT373 reflects durability, accuracy, and long service life. It is suitable for workshops, factories, HVAC systems, power plants, and educational labs across Pakistan.
Easy to operate and highly accurate, the UNI-T UT373 mini tachometer is an essential tool for preventive maintenance and mechanical diagnostics.
video
Features:
Auto range.
Up to 99999 display; overload display, "OL".
RPM measurement and revolution count.
Max/Min, Data hold.
Signal trigger/laser-on indication.
Low battery/auto power-off indication.
LCD backlight.
Specifications:
RPM measurement range: 10.0~9999.9 RPM ±(0.04%+2), 10000~99999 RPM ±(0.04%+2)
RPM measurement resolution: 0.1 to 1
Counting measurement range: 0~99999 count
Counting measurement resolution: 1 count (<10kHz, pulse width10 ~ 90%)
Counting measurement accuracy: ±1 count
Auto range: Yes
Auto power off: Yes
Low battery indication: Yes
Laser-on indication: Yes
Data hold: Yes
Maximum/minimum: Yes
Rotating speed/count function switching: Yes
Overload indication: Yes
LCD backlight: Yes
Refresh rate: About 1s to 7s (depending on the speed, >120 rpm for 1s)
Sensor type: Photodiodes and laser tubes
Target distance: 50mm ~ 200mm
Measuring angle: The angle between the laser and the surface being measured is less than 30°
Display: 5-digit segment code; 99999 max display
Drop test: 1m
Working temperature and humidity: 0 ° C to 50 ° C (no more than 80%RH)
Storage temperature and humidity: -20 ° C to + 60 ° C (no more than 80%RH)
Protection rating: IP65
Power supply: 3 1.5V batteries (AAA)
Battery life: Continuous work for 12 hours
Product color: Red and grey
Product weight: 85g (excluding battery)
Product size: 183.8x56x34mm
Uses:
Motor and fan speed measurement
Industrial machinery maintenance
HVAC system diagnostics
Workshop and factory testing
Educational and training labs
Package Include:
1 x UNI T Mini Tachometer RPM Meter UT373
