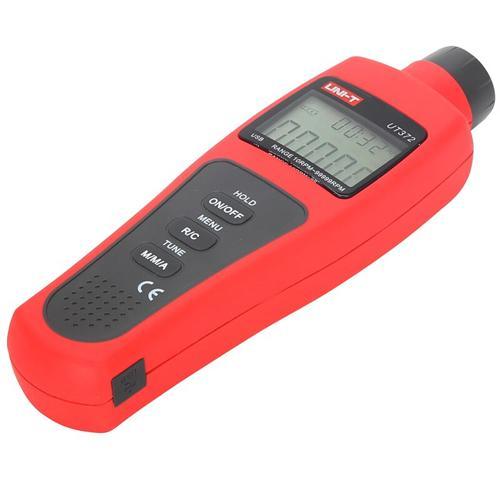

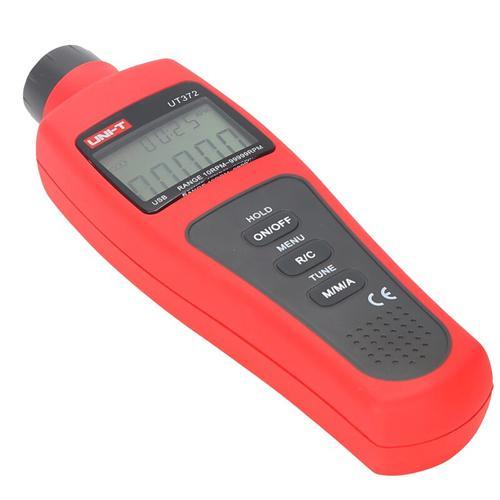

UNI T Non-Contact RPM Meter Tachometer UT372 enables the user to carry out quick and easy measurements of RPM without the need to connect the meter directly to the targeted application. The UT-372 handheld tachometer can actually measure RPM in four different ranges from 10-99RPM, 100-999RPM, 1000-9999RPM and 10000RPM-99999RPM. From this RPM meter, you've always got the right range necessary for whatever is being tested and can adjust it as necessary for faster moving or slowing moving objects. This non-contact type tachometer can also be used as a revolution counter and can count revolutions from 0 up to 99999.
Features:
Measurements of RPM with no contact
Recommended measurement distance of 50mm to 200mm
MAX/MIN/AVG functions
Data hold function
Four measurement ranges: 10-99RPM; 100-999RPM; 1000-9999RPM and 10000RPM-99999RPM
Revolution counter function with a range of 0 to 99999
Auto shut down when left idle
Low battery indicator
USB interface
Specifications:
RPM Range: 10 RPM ~ 99 rpm ± (0.03%), 100 rpm ~ 999 RPM ± (0.04% + 2), 1000 rpm ~ 9999 rpm ± (0.04% + 2), 10000 rpm ~ 99999 rpm ± (0.04% + 2)
Accounts range: 0 ~ 99999
Accounts input frequency: 10 kHz, bandwidth: 5%
Target distance: 50mm ~ 200mm
Screen count: Yes
Data retention: Yes
Auto power off Around 15 minutes
Low battery indication: ≤4. 8 V
Max mode: Yes
Min mode: Yes
AVG mode: Yes
USB interface: Yes
Power: 1.5 V alkaline batteries (LR6) x 4 (Not included)
LCD size: 53mm x 41mm
Colour of the product: Red and grey
Net weight of the product: 100g
Product size: 184mm x 56mm x 34mm
Uses
Measuring motor and machine shaft speed
Checking fan and rotor RPM in maintenance work
Monitoring speed in automotive testing
Quality control in manufacturing
Troubleshooting rotating equipment without stopping the machine
Package Includes:
1 x UNI T Non-Contact RPM Meter Tachometer UT372
