A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying . As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Features:
Auto/manual ranging
True RMS, self-calibrated chip, high accuracy
550V overload protection (μA Mode excluded)
6000 counts
12 test modes
Large LCD screen with white backlight
Data hold, auto power-off
Measure AC current up to 1000A
Measure temperature
One-year warranty
Two AAA batteries, easier to change
Specifications:
Display (LCD) 6000 count
Ranging Auto/Manual
Material ABS
Update Rate 3 times/second
True RMS √
Data Hold √
Backlight √
Low Battery Indication √
Auto Power Off √
Mechanical Specifications:
Dimension 240*90*45mm
Weight (batteries included) 352g(VC902) 325g(VC903)
Battery Type 1.5V AA Battery * 2 (VC902) 9V 6F22 Battery * 1 (VC903)
Warranty One year
Package Include:

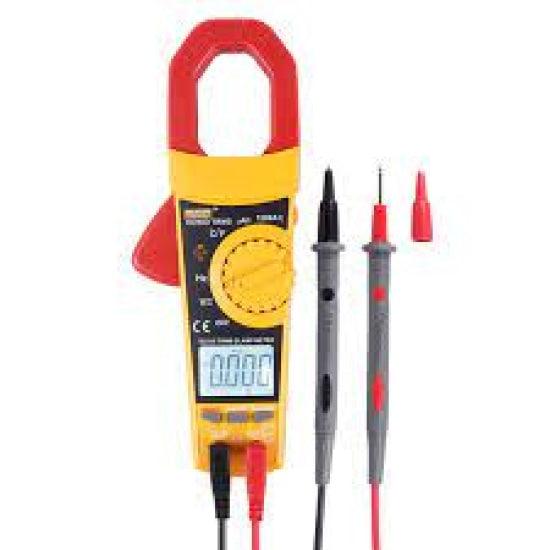

1 x VC-903 handheld digital clamp meter auto range MAX AC and DC current
